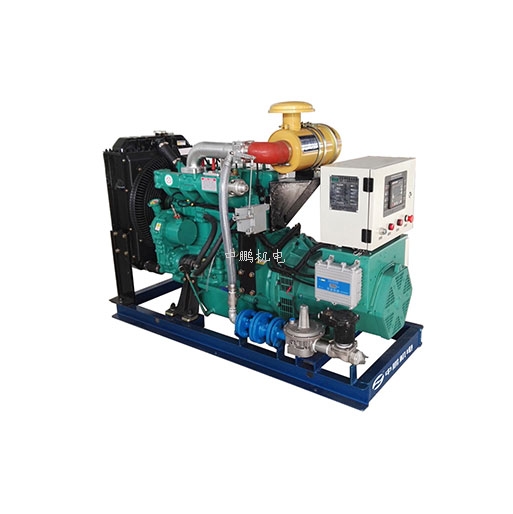

中鵬秸稈氣發(fā)電機組系列點擊次數：4051
發(fā)布時間：2020-05-27 14:32:44 |
|---|
| 秸稈氣發(fā)電機組技術參表 | |||||||||
| 機組型號 | 機組功率 | 發(fā)動機型號 | 排放量（L） | 壓縮比 | 燃氣消耗量 | 重量 | 尺寸 | ||
| KW | KVA | Current (A) |
m³/kw.h | KG | L x W x H (mm) | ||||
| ZOP20SG | 20 | 25 | 36 | 4BT3.9 | 3.9 | 10.5:1 | ＜0.50 | 850 | 1800x790x1375 |
| ZOP30SG | 30 | 37.5 | 54 | 4BTA5.9 | 3.9 | 10.5:1 | ＜0.50 | 850 | 1800x790x1375 |
| ZOP40SG | 40 | 50 | 72 | 6B5.9 | 5.9 | 10.5:1 | ＜0.50 | 900 | 2100x800x1375 |
| ZOP50SG | 50 | 62.5 | 90 | 6BT5.9 | 5.9 | 10.5:1 | ＜0.50 | 900 | 2100x800x1375 |
| ZOP75SG | 75 | 93.75 | 135 | 6CT8.3 | 8.3 | 10.5:1 | ＜0.50 | 1350 | 2440x945x1490 |
| ZOP100SG | 100 | 125 | 180 | 6CTA8.3 | 8.3 | 10.5:1 | ＜0.50 | 1350 | 2440x945x1490 |
| ZOP120SG | 120 | 150 | 216 | 6LTAA8.9 | 8.9 | 10.5:1 | ＜0.50 | 1800 | 2550x970x1500 |
| ZOP150SG | 150 | 187.5 | 271 | NT855 | 14 | 10.5:1 | ＜0.50 | 2850 | 3000x1150x1780 |
| ZOP200SG | 200 | 250 | 361 | NTA855 | 14 | 10.5:1 | ＜0.50 | 2850 | 3000x1150x1780 |
| ZOP250SG | 250 | 312.5 | 451 | KTA19 | 18.9 | 9.5:1 | ＜0.50 | 4250 | 3440x1550x2200 |
| ZOP300SG | 300 | 375 | 541 | KTA19 | 18.9 | 9.5:1 | ＜0.50 | 4250 | 3440x1550x2200 |
| ZOP350SG | 350 | 437.5 | 631 | KTA38 | 37.8 | 9.5:1 | ＜0.50 | 4250 | 3440x1550x2200 |
| ZOP400SG | 400 | 500 | 721 | KTA38 | 37.8 | 9.5:1 | ＜0.50 | 6880 | 4300x2300x2400 |
| ZOP450SG | 450 | 562.5 | 811 | KTA38 | 37.8 | 9.5:1 | ＜0.50 | 6880 | 4300x2300x2400 |
| ZOP500SG | 500 | 625 | 902 | KTA38 | 37.8 | 9.5:1 | ＜0.50 | 7200 | 4300x2300x2400 |
| ZOP600SG | 600 | 750 | 1082 | KTA50 | 50.3 | 9.5:1 | ＜0.50 | 9600 | 5652x2286x2441 |
| ZOP700SG | 700 | 875 | 1262 | KTA50 | 50.3 | 9.5:1 | ＜0.50 | 9600 | 5652x2286x2441 |
